Retention Water Tank

Manufacturer: ---
SKU: 1289

Availability: In stock

List Price: $799

Sale Price: $549

You Save: $250.00 (31%)

OR
A smart looking, chemical-mixing retention system to help provide necessary contact time for bacteria, iron, and other heavy metals

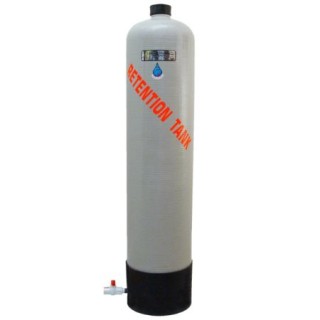

Retention Water Tank

Details

A unique system with two built-in mixing chambers and a swirl chamber that reduce a drop of water to hundreds of micro bubbles, allowing the chemical to mix and react 5 times faster than a standard retention tank. This concept allows us to reduce the overall size of the system substantially. Only 12 inches of floor space is required (12" x 60").

The system is constructed of all polyglass, noryl, and PVC materials. It is pre-plumbed, 1-inch throughout and has 3/4" drain for blow-down. Should there ever be a need for gas-off, a tapped port is built in and capped off.

Features and Benefits

  • Outperforms a 120 gallon standard retention tank
  • 5 year warranty
  • FLOW RATE: 24 G.P.M.
  • CHAMBER SIZE: 1 Inch
  • IN/OUT: 1" Threaded
  • PRESSURE DROP: 3 Lbs @ 40 P.S.I.
  • # OF MIXING CHAMBERS: 2 Internal
  • # OF SWIRL CHAMBERS: 2 Internal
  • BLOWDOWN DRAIN SIZE: 3/4" Ball Valve
  • MAX. OPERATING PRESSURE: 125 P.S.I

Additional Information

Setup & Installation Instructions

Water Filtration Glossary

Additional Information

Manufacturer ---
UPS Ground Free Shipping No
SKU 1289
Weight 118.0000

Customer Reviews

  1. Works as advertised, Review by Steve O
    Rating

    Installed this tank along with the inline chlorinator for sale here. Very straightforward installation, and instructions are very concise. Use the pipe dope (I used Great White brand) for no leaks, used tape the first time and got leaks! Keep in mind this tank is actually 60 gallons, but the mixing tube allows it to perform like a 120. It is actually priced very nicely compared to other larger tanks, in the event you would need to install a second tank (twin tank system.)

    Install tips- Use Shark Bite fittings so that if you have to remove the tank, you can unscrew the inlet/outlet and not cut any pipe (shark bites allow the pipe to spin). Also if you can use a 1” npt to barb fitting for the exit, this can allow you to use a spa hose and keep a visual on the water clarity heading to the next destination.
    For the drain valve- use a 3/4” male to barb to attach again a spa hose so you get a visual on the water getting clear while draining.

  2. Amazing how well it works!, Review by Randy M.
    Rating

    Just finished connecting my chlorinator, treatment tank and Puremaster V700. I can't believe the instant difference! Once I flushed the old water from the house, it is amazing how well it works! I cannot tell you how nice it is for me and my wife to shower and brush our teeth with amazingly fresh water! I will definitely keep you informed on how well it works in the future. Again, thanks for all your help!!!
    Randy & Brenda M., Lutz, Florida (FL)
